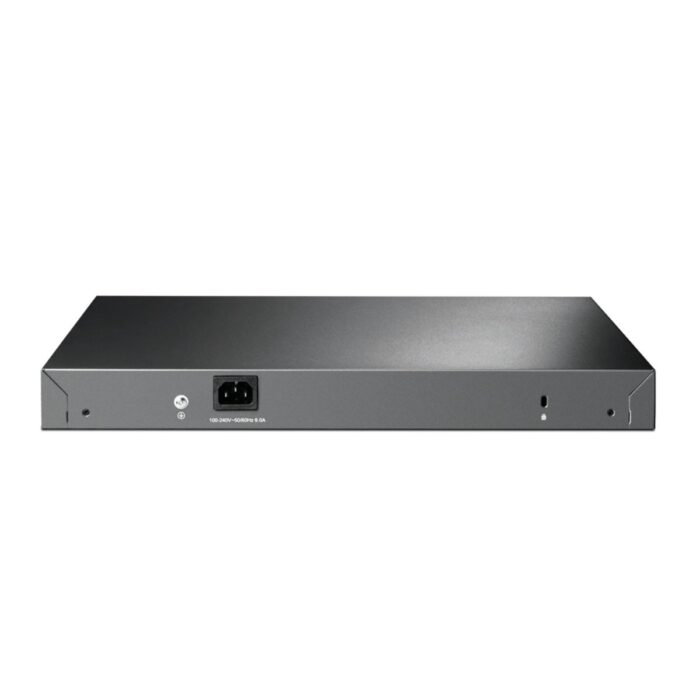

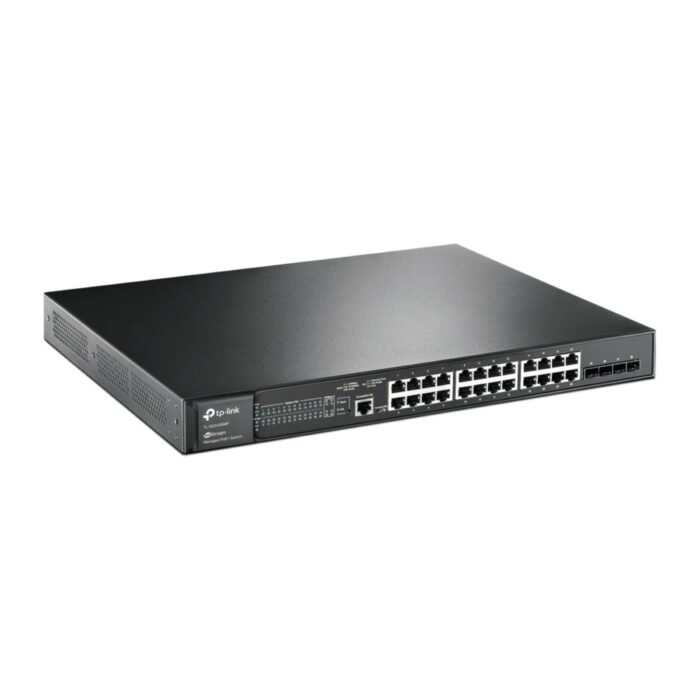

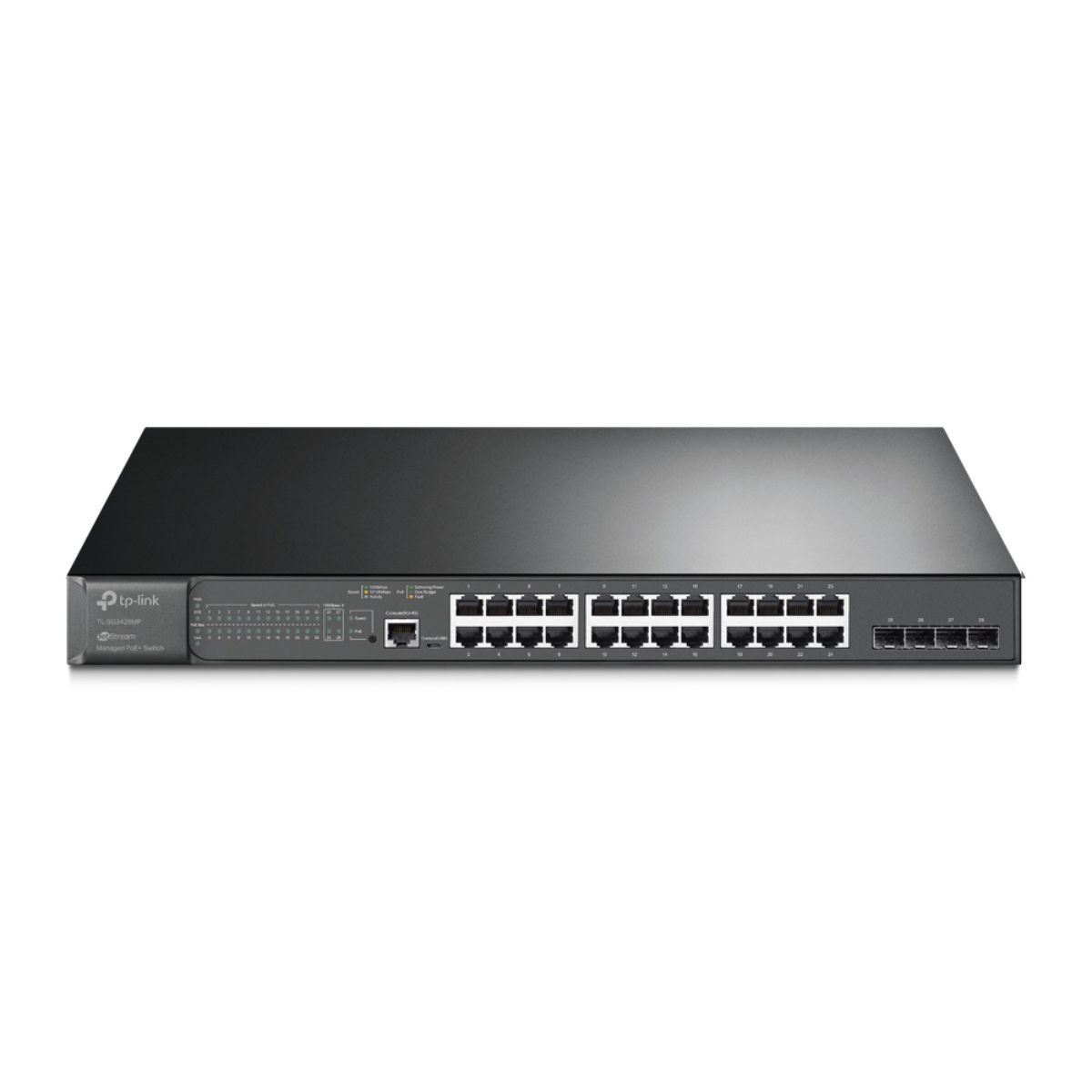

Omada TP Link Managed Switch – (SG3428MP)

฿11,000

20 ผลิตภัณฑ์ที่ขายไปใน 13 ชั่วโมงที่ผ่านมา
ขายเร็ว! 6 คนมีสิ่งนี้ในรถเข็นของพวกเขา

Omada 28-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots

PORT: 24× Gigabit PoE+ Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port
SPEC: 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%



22 คนกำลังดูสิ่งนี้อยู่ตอนนี้
  • Disc ต้องการจัดเซต สอบถามโซลูชัน ติดต่อป๊าที่
  • Disc โทร. 064-241-9592
  • Disc E-mail : gopapa@wtc.co.th
Brand TP-LINK
Model TL-SG3428MP V6
Network Interface • 24× 10/100/1000Mbps RJ45 Ports
• 4× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
USB Port 1× Micro-USB Console Port
Standards and Protocols N/A
Switching Capacity 56 Gbps
Transmission Method N/A
MAC Address Table • V1: 8K
• V2 and above: 16K
Forwarding Rate 41.66 Mpps
Jumbo Frame 9 KB
Packet Buffer Memory 4.1 Mbit
Management • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
– Trap/Inform
– RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
VLAN • VLAN Group
– Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 30 Entries (12 Entries for TL-SG3428MP V1.0)
• Protocol VLAN: Protocol Template 16, Protocol
VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)
– Port-Based QinQ
– Selective QinQ
• Voice VLAN
Features Quality of Service

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– SP+WRR
• Bandwidth Control
– Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark
L2 and L2+ Features

• Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
– 802.1d STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
– Port-based
– VLAN based
• Flow Control
– 802.3x Flow Control
– HOL Blocking Prevention
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Tx/Rx/Both
L2 Multicast

• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
– Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile
Fan Quantity 2
Material N/A
PoE • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports, up to 30 W per port
• Power Budget: 384 W*
Power Supply 100-240 V AC~50/60 Hz
Power Consumption • V1: 463.8 W (110 V/60 Hz) (with 384 W PD connected); 31.0 W (110 V/60 Hz) (no PD connected)
• V2: 465.8 W (110 V/60 Hz) (with 384 W PD connected); 34.4 W (110 V/60 Hz) (no PD connected)
• V3: 442.1 W (220 V/50 Hz) (with 384 W PD connected)
• V4: 460.8 W (110 V/60 Hz) (with 384 W PD connected)
• V5: 456.4 W (110 V/60 Hz) (with 384 W PD connected)
Environment • Operating Temperature: 0–45 ? (32–113 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Certifications

CE, FCC, RoHS
Package Contents • TL-SG3428MP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
Dimension (W x D x H) 44 x 33 x 4.4 cm
Net Weight 0 KG
Package Dimension (W x D x H) 10 x 53 x 44 cm
Gross Weight 6.1 KG
Volume 23320.00 cm3
